Description

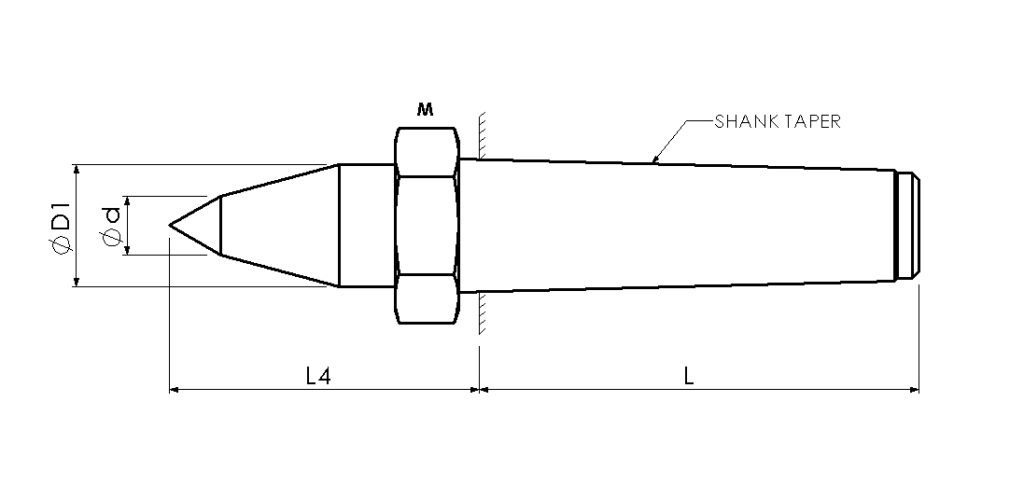

DETAILED PRODUCT DIMENSION
| PART NO. | MODEL | MT NO. | ØD1
mm |
Ød
mm |
M
THREAD |
L4
mm |
L
mm |
| DC MT3 | FULL CNC WITH NUT EXTENDED (MALE) | MT-3 | 24.1 | 11.0 | 27 X 1.5 | 70.0 | 81.0 |
| DC MT4 | FULL CNC WITH NUT EXTENDED (MALE) | MT-4 | 31.6 | 14.0 | 36 X 1.5 | 83.5 | 102.5 |
| DC MT5 | FULL CNC WITH NUT EXTENDED (MALE) | MT-5 | 40.0 | 18.0 | 48 X 1.5 | 90.5 | 129.5 |
